Geometry
Download Tamil Nadu 10th Standard Maths question papers, model tests, one-mark questions, important questions, and public exam papers in PDF format. Free study materials and answer keys for TN State Board students.
Questions + Answers key
Take MCQ Maths Test1.
If \(\triangle\)ABC is similar to \(\triangle\)DEF such that BC = 3 cm, EF = 4 cm and area of \(\triangle\)ABC = 54 cm2. Find the area of \(\triangle\)DEF.
2.
Is \(\triangle\)ABC ~ \(\triangle\)PQR?
3.
Construct a triangle similar to a given triangle PQR with its sides equal to \(\frac { 7 }{ 4 } \) of the corresponding sides of the triangle PQR (scale factor \(\frac { 7 }{ 4 } \)>1)
4.
Construct a \(\triangle\)PQR in which PQ = 8 cm, \(\angle\)R = 60o and the median RG from R to PQ is 5.8 cm. Find the length of the altitude from R to PQ.
5.
In \(\triangle\) ABC, if DE||BC, AD = x, DB = x − 2, AE = x +2 and EC = x − 1 then find the lengths of the sides AB and AC.

6.
A girl looks at the reflection of the top of the lamp post on the mirror which is 6.6 m away from the foot of the lamp post. The girl whose height is 12.5 m is standing 2.5 m away from the mirror. Assuming the mirror is placed on the ground facing the sky and the girl, mirror and the lamp post are in the same line, find the height of the lamp post.
7.

8.
The two tangents from an external points P to a circle with centre at O are PA and PB. If \(\angle APB\) = 70o then the value of \(\angle AOB\) is
100°
110°
120°
130°
9.
Two poles of heights 6 m and 11 m stand vertically on a plane ground. If the distance between their feet is 12 m, what is the distance between their tops?
13 m
14 m
15 m
12.8 m
10.
If in \(\triangle\)ABC, DE || BC, AB = 3.6 cm, AC = 2.4 cm and AD = 2.1 cm then the length of AE is
1.4 cm
1.8 cm
1.2 cm
1.05 cm
11.
In ∆LMN, \(\angle\)L = 60o, \(\angle\)M = 50o. If ∆LMN ~ ∆PQR then the value of \(\angle\)R is
40o
70°
30°
110°
12.
If in triangles ABC and EDF,\(\cfrac { AB }{ DE } =\cfrac { BC }{ FD } \) then they will be similar, when
\(\angle B=\angle E\)
\(\angle A=\angle D\)
\(\angle B=\angle D\)
\(\angle A=\angle F\)
1.
Since the ratio of area of two similar triangles is equal to the ratio of the squares of any two corresponding sides, we have
\(\frac { Area(\Delta ABC) }{ Area(\Delta DEF) } =\frac { { BC }^{ 2 } }{ { EF }^{ 2 } } \) gives \(\frac { 54 }{ Area(\Delta DEF) } =\frac { { 3 }^{ 2 } }{ { 4 }^{ 2 } } \)
\(Area(\Delta DEF)=\frac { 16\times 54 }{ 9 } =96{ cm }^{ 2 }\)
2.
In Is \(\triangle\)ABC ~ \(\triangle\)PQR
\(\frac { PQ }{ AB } =\frac { 3 }{ 6 } =\frac { 1 }{ 2 } ;\frac { QR }{ BC } =\frac { 4 }{ 10 } =\frac { 2 }{ 5 } \)
Since \(\frac { 1 }{ 2 } \neq \frac { 2 }{ 5 } ,\frac { PQ }{ AB } \neq \frac { QR }{ BC } \)
The corresponding sides are not proportional.
Therefore \(\triangle\)ABC is not similar to \(\triangle\)PQR.

3.


Given a triangle PQR, we are required to construct another triangle whose sides are \(\frac { 7 }{ 4 } \) of the corresponding sides of the triangle PQR.
Steps of construction
1. Construct a DPQR with any measurement.
2. Draw a ray QX making an acute angle with QR on the side opposite to vertex P.
3. Locate 7 points (the greater of 7 and 4 in \(\frac { 7 }{ 4 } \))
Q1,Q2,Q3,Q4,Q5,Q6 and Q7 on QX so that
QQ1 = Q1Q2 = Q2Q3 = Q4Q5 = Q5Q6 = Q6Q7
4. Join Q4 (the 4th point, 4 being smaller of 4 and 7 in \(\frac { 7 }{ 4 } \)) to R and draw a line through Q7 parallel to Q4R, intersecting the extended line segment QR at R'.
5. Draw a line through R' parallel to RP intersecting the extended line segment QP at P'.
Then \(\triangle\)P'QR' is the required triangle each of whose sides is seven-fourths of the corresponding sides of \(\triangle\)PQR.
4.

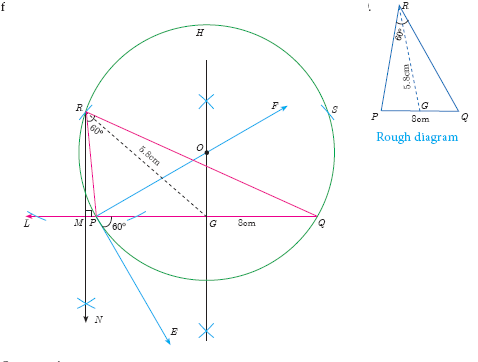

Construction
Step 1: Draw a line segment PQ = 8cm.
Step 2: At P, draw PE such that \(\angle\)QPE = 60o.
Step3: At P, draw PF such that\(\angle\)EPF = 90o.
Step 4: Draw the perpendicular bisector to PQ, which intersects PF at O and PQ at G.
Step 5: With O as centre and OP as radius draw a circle.
Step 6: From G mark arcs of radius 5.8 cm on the circle. Mark them as R and S.
Step 7: Join PR and RQ. Then \(\triangle\)PQR is the required triangle.
Step 8: From R draw a line RN perpendicular to \(\angle\)Q. \(\angle\)Q meets RN at M
Step 9: The length of the altitude is RM = 3.8 cm.
5.
In \(\triangle\) ABC we have DE || BC.
By Thales theorem, we have \(\frac { AD }{ DB } =\frac { AE }{ EC } \)
\(\frac { x }{ x-2 } =\frac { x+2 }{ x-1 } \) gives x(x - 1) = (x - 2)(x + 2)
When x = 4, AD = 4, DB = x - 2, AE + x + 2 = 6, EC = x - 1 = 3
Hence, AB = AD + DB = 4 + 2 = 6, AC = AE + EC = 6 + 3 = 9
Therefore, AB = 6, AC = 9
6.
Let AC is the lamp post and ED is the girl.
From the triangles ABC and DBE
o
By AA criteria
Their sides are Proportional
\(\frac{A C}{D E}=\frac{B C}{B E} \)
\( \frac{A C}{12.5}=\frac{6.6}{2.5} \)
\(A C= \frac{6.6 \times 12.5}{2.5}=\frac{6.6 \times 12.5^{5}}{2.5}=33 \mathrm{~m} \)
Height of the lamp post = 33 m
7.
(d)
8.
(b)
110°
9.
(a)
13 m
10.
(a)
1.4 cm
11.
(b)
70°
12.
(c)
\(\angle B=\angle D\)
