CBSE 12th Standard Physics Subject Moving Charges And Magnetism Ncert Exemplar 1 Mark Questions 2021

Published on: 23/05/2021

QB365 Provides the updated NCERT Exemplar Questions for Class 12, and also provide the detail solution for each and every case study questions. NCERT Exemplar questions are latest updated question pattern from NCERT, QB365 will helps to get more marks in Exams

Download CBSE Class 12th Standard CBSE Physics question papers, sample papers, important questions, and previous year solved papers in PDF format. Get free study materials, NCERT solutions, and exam preparation resources for Class 12th Standard CBSE Physics

Questions + Answers key

Take MCQ Physics Test

QB365 Student Learing Managemnet System

Std: 12th Standard CBSE - Physics

chapter: - NCERT Exemplers

Visit QB365-SLMS - https://www.qb365.in/slms/ Complete Questions and Answers

Questions:

Generic 2

4 x 2 = 8

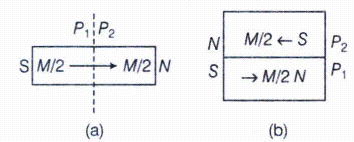

A bar magnet is cut into two equal parts as shown in the Fig. (a) One part is now kept over the other such that, the P₂is above P₁ as shown in the Fig.(b).
If M is the magnetic moment of the original magnet, what would be the magnetic moment of new combination of magnets so formed?

Why is a coil wrapped on a conducting frame in a galvanometer?

Give the magnitude of torque which acts on a coil carrying current placed in a uniform radial magnetic field.

A coil of N turns and radius R carries a current I. It is unwound and rewound to make a square coil of side a having same number of turns N.Keeping the currentI same, find the ratio of the magnetic moment of the square coil and the circular coil.

Visit QB365-SLMS - https://www.qb365.in/slms/

Answers Key:

Generic 2

4 x 2 = 8

When the bar magnet is cut into two equal parts, as shown in the Fig. (a), P₁ behaves as N and P₂ behaves as S and magnetic moment of each part of magnet becomes \(\frac { M }{ 2 } \) . When pole P₂ is placed over pole P₁ as shown in Fig. (b), the Magnetic moment of the combination is zero i.e. \(\frac { M }{ 2 } -\frac { M }{ 2 } =0.\)

Eddy current in conducting frame help in stropping the coil soon,i.e.in making the galvanometer dead beat.

Torque, \(\tau \) = NBIA sin \(\theta\), where the terms have their usual meanings.

Ratio of magnetic moments,
\(\frac { M_{ s } }{ M_{ c } } =\frac { 2INA_{ s } }{ INA_{ c } } =\frac { 2\left( \frac { R }{ 2 } \right) ^{ 2 } }{ \left( R \right) ^{ 2 } } =\frac { 1 }{ 2 } \)
