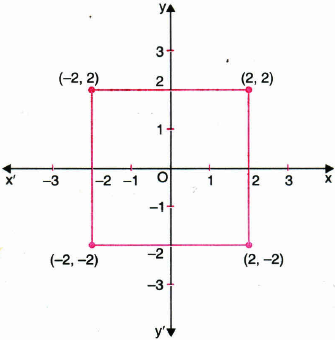

Mark the points (2,2), (2,-2), (-2,-2) and (-2,2) on a graph paper and join these points.Name the figure that you obtain.Also, find the area of the figure so obtained.

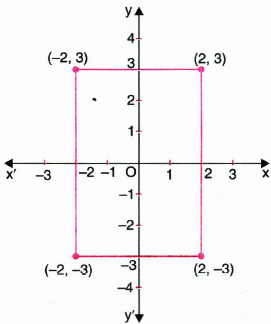

Plot the points (2,3), (-2,3), (-2,-3) and (2,-3) on a graph sheet.Join these points.Name the figure obtained.Also, find the area of the figure so obtained.

Three vertices of a square PQRS are P(-4,0), Q(1,0), R(1,-5).Plot the points.Also, find the coordinates of the missing vertex S.

Plot the following points, join them in order and identify the figure thus formed: A(1,3), B(1,-1), C(7,-1) and D(7,3).Write the coordinates of the point of intersection of the diagonals.

Plot the points A(3,0), B(3,3) and C(0,3) in a Cartesian plane.Join OA, OB, BC and CO.Name the figure so formed and write its one property.

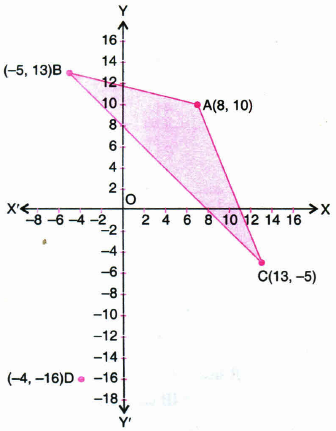

Plot the points A, B, C, D from the table:

and answer the following:
(a) Write the coordinates of A, B, C, D.
(b) Shade the triangle ABC.

Plot the following points on a graph sheet and join them in order B(-5,3), E(-3,-2), S(4,-2), T(1,3).Also mention the quadrants in which the points lie.

In figure, ABCD is a rectangle with length 6 cm and breadth 3 cm.O is the mid point of AB.Find the coordinates of A, B C and D.

See figure and write the following:
(i) Coordinates of point P
(ii) Abscissa of point Q
(iii) The point identified by the coordinates (-4,4)
(iv) The point identified by the coordinates (-3,-6)

From the given figure, write the points whose
(a) ordinate = 0
(b) abscissa = 0
(c) abscissa = -3
(d) ordinate = 4
