Displacement of does not arise due to motion of charge carries but it arises due to time variation of electric flux.

Infrared radiation waves are produced by hot bodies and molecules so it is referred as heat waves. (eg. Sun)
(i) Electromagnetic waves having shorter λ than Infrared radiation are visible, U - v, X-rays, and ૪ - rays.
(ii) Electromagnetic waves having longer λ than Infrared radiation are microwaves, radiowaves.

It is used in radio and television communication systems and also in cellular phones to transmit voice communication in the ultra high frequency band.

When the spectrum obtained from the Sun is examined, it consists of large number of dark lines (line absorption spectrum). These dark lines in the solar spectrum are known as Fraunhofer lines.

\(\oint _l\vec{B} \cdot \overrightarrow{d l}=\mu_{o} i_{\text {c }}+\mu_{o} \varepsilon_{o} \frac{d}{d t} \oint _s \vec{E} \cdot \overrightarrow{d A}\)

An electromagnetic waves are the waves that are radiated by an accelerated charge which propagates through space as coupled electric and magnetic fields, oscillating perpendicular to each other and to the direction of propagation of the wave.

The displacement current can be defined as the current which comes into play in the region in which the electric field or the electric flux is changing with time.

The amplitude of the electric field, E₀ = 3 x 10⁴ NC^-1
The amplitude of the magnetic field, B₀ = 2 x 10^-4 T. Therefore, speed of the electromagnetic wave in a medium is
v = \(\frac { 3\times { 10 }^{ 4 } }{ 2\times { 10 }^{ -4 } } \)  = 1.5 x 10⁸ ms^-1.

E = E_o sin(kx – ωt)
ω = ck
ω = 3 x 10⁸ x 10⁶
ω = 3 x 10¹⁴  rad s^-1

\(B_o=\frac{E_o}{C}=\frac{\sqrt2E_{rms}}{C}\)
\(B_o=\frac{\sqrt2 \times 3}{3 \times10^8}=1.414 \times10^{-8}T\)

\( { E } ={ E }_{ 0 }\hat { k } \) and \({ B } ={ B }_{ 0 }\hat { j } \)

It provides electrical energy to satellites by means of solar cells. It is used to produce dehydrated fruits, in green houses to keep the plants warm, heat therapy for muscular pain or sprain, TV remote as a signal carrier, to look through haze fog or mist and used in night vision or infrared photography.

Power of the pulse P = 60 x 10^-3 W
Time internal t = 10^-6 S
Energy U = Power x time
U = p x t
= 60 x 10^-3 x 10^-6
U = 60 x 10^-9 J
Lineral momentum, \(\mathrm{P}=\frac{\text { Energy }}{\text { speed }}=\frac{U}{C} \ \)
\(\mathrm{P}=\frac{60 \times 10^{-9}}{3 \times 10^{8}} \)
P = 20 x 10^-17 kg ms^-1

Absorption spectra:
When light is allowed to pass through a medium or an absorbing substance then the spectrum obtained is known as absorption spectrum. It is the characteristic of absorbing substances. Absorption spectrum is classified into three types:
(i) Continuous absorption spectrum:
When we pass white light through a blue glass plate, it absorbs all the colours except blue and gives continuous absorption spectrum.
(ii) Line absorption spectrum:
When light from the incandescent lamp is passed through cold gas (medium), the spectrum obtained through the dispersion due to prism is line absorption spectrum . Similarly, if the light from the carbon are is made to pass through sodium vapour, a continuous spectrum of carbon are with two dark lines in the yellow region are obtained.
(iii) Band absorption spectrum:
When the white light is passed through the iodine vapour, dark bands on continuous bright background is obtained. This type of band is also obtained when white light is passed through diluted solution of blood or chlorophyll or through certain solutions of organic and inorganic compounds.

Emission spectra:
When the spectrum of self luminous source is taken, we get emission spectrum. Each source has its own characteristic emission spectrum. The emission spectrum can be divided into three types:
(i) Continuous emission spectra (or continuous spectra) :
(a) If the light from incandescent lamp (filament bulb) is allowed to pass through prism (simplest spectroscope), it splits into seven colours.
(b) Thus, it consists of wavelengths containing all the visible colours ranging from violet to red (in the figure). Examples: spectrum obtained from carbon arc, incandescent solids.
(ii) Line emission spectrum (or line spectrum) :
(a) Suppose light from hot gas is allowed to pass through a prism, line spectrum is observed. Line spectra are also known as discontinuous spectra. The line spectra consists of  sharp lines of definite wavelengths or frequencies.
(b) Such spectra arise due to excited atoms of elements. These lines are the characteristics of the element  and are different for different elements. Examples: spectra of atomic hydrogen, helium, etc.
(iii) Band emission spectrum (or band spectrum) :
(a) Band spectrum consists of several number of very closely spaced spectral lines which overlapped together forming specific bands which are separated by dark spaces.
(b) This spectrum has a sharp edge at one end and fades out at the other end. Such spectra arise when the molecules are excited.
(c) Band spectrum is the characteristic of the molecule hence, the structure of the molecules can be studied using their band spectra. Examples, spectra of hydrogen gas, ammonia gas in the discharge tube, etc.

(i) Electromagnetic waves are produced by any accelerated charge
(ii) Electromagnetic waves do not require any medium for propagation. So electromagnetic wave is a non mechanical wave.

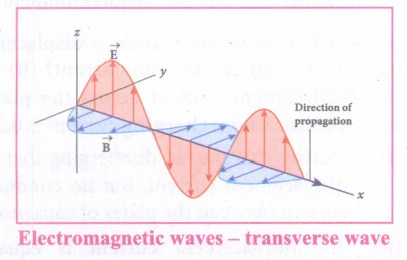

(iii) Electromagnetic waves are transverse in nature. This oscillating electric field vector, oscillating magnetic field vector and propagation vector (gives direction of propagation) are mutually perpendicular to each other.
(iv) Electromagnetic waves travel with speed which is equal to the speed of light in vacuum or free space,
\(c =\frac{1}{\sqrt{\varepsilon_{o} \mu_{o}}} \)
\(=3 \times 10^{8} \mathrm{~ms}^{-1} \)
where ε_o is the permittivity of free space or vacuum and μ_o is the permeability of free space or vacuum.
(v) In a medium with permittivity ε and permeability μ, the speed of electromagnetic wave is less than speed in free space or vacuum, that is, v < c.
In a medium of refractive index, \(\mu=\frac{c}{v} \)
n \(=\frac{\frac{1}{\sqrt{\varepsilon_{o} \mu_{o}}}}{\frac{1}{\sqrt{\varepsilon \mu}}} =\sqrt{\varepsilon_{r} \mu_{r}} \)
where ε_r is the relative permittivity of the medium (also known as dielectric constant) and μ_r is the relative permeability of the medium
(vi) Electromagnetic waves are not deflected by electric field or magnetic field.
(vii) Electromagnetic waves can exhibit interference, diffraction and polarization.
(viii) Like other waves, electromagnetic waves also carry energy, linear momentum and angular momentum.
(ix) If the electromagnetic wave incident on a material surface is completely absorbed, then the energy delivered is U and momentum imparted on the surface is \(p=\frac{U}{C}\)
(x) If the incident electromagnetic wave of energy U is totally reflected from the surface, then the momentum delivered to the surface is
\(\Delta p=\frac{U}{C}-\left(-\frac{U}{C}\right)=2 \frac{U}{C}\)

(i) We have stated Ampere's law as \(\oint \vec{B} \cdot \overrightarrow{d l}=\mu_oi\)
(ii) Where, i is the electric current crossing a surface bounded by a closed curve and the line integral of \(\vec{B}\) is calculated along that closed curve. This equation is valid only when the electric field at the surface does not change with time.
(iii) Maxwell strongly believed that when the time varying magnetic field produces an electric field, the time varying electric field must produce a magnetic field.
(iv) To understand how a varying electric field produces magnetic field, let us consider a situation of charging a parallel plate capacitor.

(v) Let i_c be the conduction current. To calculate the magnetic field at P (fig. 1 ) an amperian loop. S₁ is drawn. Applying Ampere circuital law for the surface S₁, we get
\(\oint \vec{B} \cdot \overrightarrow{d l}=\mu_0 i_c\) Where, \(\mu_0\) is permeability of free space.
(vi) Applying the same for the surface S₂, we get \(\oint \vec{B} \cdot \overrightarrow{d l}=0.\)
Because the surface S₂ nowhere touches the wire carrying conduction current. Therefore for the point P at one surface (S₁) it has some value and at another surface (S₂) it has zero value.
(vii) So, Maxwell believed that there must be a current associated with the changing electric field in between the capacitor and he called that current as displacement current.
(viii) Applying Gauss law to the electric flux between the plates of the capacitor \(\phi_E=\oint \vec{E} \cdot \overrightarrow{\mathrm{dA}}=E A=\frac{q}{\varepsilon_0}\) where, A is the area of the plate.
The change in electric flux is \(\frac{d \phi_F}{d t}=\frac{1}{\varepsilon_0} \frac{d q}{d t} (or) \frac{\mathrm{dq}}{\mathrm{dt}}=\mathrm{i}_{\mathrm{d}}=\varepsilon_0 \frac{\mathrm{d} \phi_{\mathrm{E}}}{\mathrm{dt}}\), where i_d is the displacement current.
(ix) The displacement current can be defined as the current which comes into play in the region in which the electric field and electric flux are changing with time.
(x) So, Maxwell modified Ampere's law \(\oint_{l} \vec{B} \cdot d \vec{l}=\mu_{0} i_c+\mu_{0}-i_d\) which means the total current enclosed by the surface is sum of conduction current and displacement current.

(d) Assertion is false but Reason is true.

(c) Assertion is true but Reason is false
