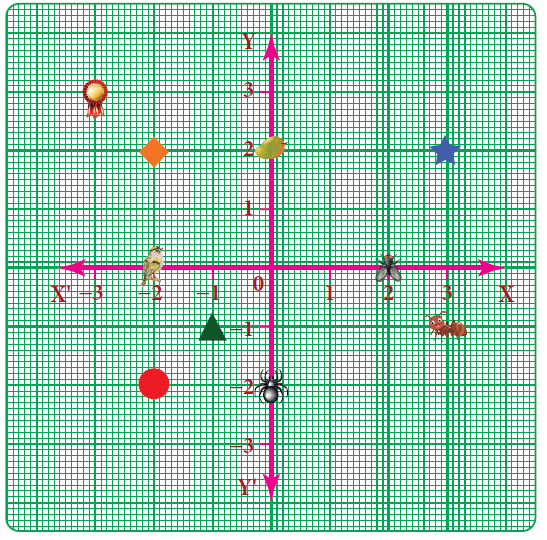

Use the graph to determine the coordinates where each figure is located
a) Star _______
b) Bird _______
c) Red Circle _______
d) Diamond _______
e) Triangle _______
f) Ant _______
g) Mango _______
h) Housefly _______
i) Medal _______
j) Spider _______

Find the quadrants without plotting the points on a graph sheet.
(3, − 4), (5,7), (2,0), ( − 3, − 5), (4, − 3), ( − 7,2), ( − 8,0), (0,10), ( − 9,50).

The denominator of a fraction exceeds its numerator by 8. If the numerator is increased by 17 and the denominator is decreased by 1, we get \(\frac { 3 }{ 2 } \). Find the original fraction.

A number consists of two digits whose sum is 9. If 27 is subtracted from the original number, its digits are interchanged. Find the original number.

A total of 90 currency notes, consisting only of Rs.5 and Rs.10 denominations, amount to Rs.500. Find the number of notes in each denomination.

The length of a rectangle is \(\frac { 1 }{ 3 } \) of its breadth. If its perimeter is 64m, then find the length and breadth of the rectangle.

One number is seven times another. If their difference is 18, find the numbers.

Find x and m: (i)\(\frac { 3x-2 }{ 4 } =\frac { (x-3) }{ 5 } =-1\)
(ii) \(\frac { m+9 }{ 3m+15 } =\frac { 5 }{ 3 } \)

Find x: (i) – 3(4x + 9) = 21 (ii) 20 – 2 ( 5 – p) = 8 (iii) (7x – 5) – 4(2 + 5x) = 10(2 – x)

Find x and p: (i) \(\frac { 2x }{ 3 } \) - 4 = \(\frac { 10 }{ 3 } \) (ii) y+\(\frac { 1 }{ 6 } \) - 3y = \(\frac { 2 }{ 3 } \) (iii) \(\frac { 1 }{ 3 } -\frac { 1x }{ 3 } =\frac { 7x }{ 12 } +\frac { 5 }{ 4 } \)
