Two Dimensional Analytical Geometry-II
Download Tamil Nadu 12th Standard Maths question papers, model tests, one-mark questions, important questions, and public exam papers in PDF format. Free study materials and answer keys for TN State Board students.
Questions + Answers key
Take MCQ Maths Test1.
Find the value of c if y = x + c is a tangent to the hyperbola 9x2 - 16y2 = 144.
2.
For the hyperbola 3x2 - 6y2 = -18, find the length of transverse and conjugate axes and eccentricity.
3.
Find the area of th triangle found by the lines Joining the vertex of the parabola x2 = -36y to the ends of the latus rectum.
4.
Find the equation of circles that touch both the axes and pass through (-4, -2) in general form.
5.
Find the equation of the circle with centre (2, -1) and passing through the point (3, 6) in standard form.
6.
Find the equations of the tangent and normal to the circle x2 + y2 = 25 at P(-3, 4).
7.
Find the eccentricity of the hyperbola with foci on the x-axis if the length of its conjugate axis is \({ \left( \frac { 3 }{ 4 } \right) }^{ th }\) of the length of its tranverse axis.
8.
Find the locus of a point which divides so that the sum of its distances from (-4, 0) and (4, 0) is 10 units.
9.
Find the equation of tangent to the circle x2 +y2 + 2x - 3y - 8 = 0 at (2, 3).
10.
Obtain the equation of the circle for which (3, 4) and (2, -7) are the ends of a diameter.
11.
A kho-kho player In a practice session while running realises that the sum of tne distances from the two kho-kho poles from him is always 8m. Find the equation of the path traced by him of the distance between the poles is 6m.
12.
The foci of a hyperbola coincides with the foci of the ellipse \(\frac { { x }^{ 2 } }{ 25 } +\frac { y^{ 2 } }{ 9 } =1\). Find the equation of the hyperbola if its eccentricity is 2.
13.
Find the equation of the ellipse whose eccentricity is \(\frac { 1 }{ 2 } \), one of the foci is(2, 3) and a directrix is x = 7. Also find the length of the major and minor axes of the ellipse.
14.
Find the vertex, focus, directrix, and length of the latus rectum of the parabola x2−4x−5y−1 = 0.
15.
If a parabolic reflector is 20 cm in diameter and 5 cm in diameter and 5 cm deep, then its focus is ____________
(0, 5)
(5, 0)
(10, 0)
(0, 10)
16.
17.
If x + y = k is a normal to the parabola y2 = 12x, then the value of k is
3
-1
1
9
18.
19.
The eccentricity of the hyperbola whose latus rectum is 8 and conjugate axis is equal to half the distance between the foci is
\(\frac { 4 }{ 3 } \)
\(\frac { 4 }{ \sqrt { 3 } } \)
\(\frac { 2 }{ \sqrt { 3 } } \)
\(\frac { 3 }{ 2 } \)
1.
Given line is y = x + c
m = 1, c = c
Equation of the hyperbola is 9x2 - 16y2 = 144
\(\div \)144 we get \(\frac { { x }^{ 2 } }{ 16 } +\frac { { y }^{ 2 } }{ 9 } \) = 1
a2 = 16, b2 = 9
The condition for the line y = mx + c to be a tangent to the hyperbola is c2 = a2m2 - b2
∴ c2 = 16(1)2 - 9 = 16 - 9 = 7
∴ c = ±\(\sqrt7\)
2.
Given equation of the hyperbola is
3x2 - 6y2 = -18; \(\div \)by (-18) we get \(\frac{y^2}{3}- \frac{x^2}{6}\) = 1
The transverse axis is long y-axis.
Here a2 = 3, b2 = 6
Length of transverse axis is 2a = 2\(\sqrt { 3 } \)
Length of conjugate axis is 2b = 2\(\sqrt { 3 } \)
\(e=\sqrt { 1+\frac { { b }^{ 2 } }{ { a }^{ 2 } } } =\sqrt { 1+\frac { 6 }{ 3 } } =\sqrt { 1+2 } =\sqrt { 3 } \)
3.
Given equation is x2 = -36y
focus is (0, -1) = (0, -9) and latus rectum is y = -9 in (1)
We get, x2 = -36(-9) ⇒ x = \(\sqrt { 36(9) } \) = 6(3) = 18
Area of Δ AOB = 2(area of ΔOSB)
\(=2\left( \frac { 1 }{ 2 } \times b\times h \right) =2\left( \frac { 1 }{ 2 } \times 18\times 9 \right) =162\)
[∵ b = SB = 18, h = OS = 9]
4.
Since the circle touch both the axis. Its equation will be
(x + a)2 + (y + a)2 = a2 ...............(1)
It passes through (-4, -2)
∴ (-4 + a)2 + (-2 + a)2 = a2
\(16+\not a^{2}+8 a+4+a^{2}+4 a=\not a^{2}\)
⇒ a2 + 12a + 20 = 0
⇒ (a + 10)(a + 2) = 0
a = -10 or -2
Case (i):
When a = -10, (1) becomes
(x + 10)2 + (y + 10)2 = 102
\(\Rightarrow x^{2}+\not 100+20 x+y^{2}+\not 100+20 y=160\)
⇒ x2 + y2+ 20x + 20y + 100 = 0
Case (ii):
When a = -2, (1) becomes
⇒ (x + 2)2 + (y + 2)2 = 22
\(x^{2}+4 x+4+y^{2}+4 y+\not 4 = \not 4\)
x2 + y2+ 4x + 4y + 4 = 0
Hence, equation of the circles are
x2 + y2+ 4x + 4y + 4 = 0
or x2 + y2+ 20x + 20y + 100 = 0
5.
Given centre is (2, -1) and passing through the point (3, 6)
∴ r = distance between (2, -1) and (3, 6)
= \(\sqrt { { (2-3) }^{ 2 }+(-1{ -6) }^{ 2 } } \)
= \(\sqrt { { (-1) }^{ 2 }+({ -7) }^{ 2 } } \)
= \(\sqrt { 1+49 } =\sqrt { 50 } \)
∴ Equation of the circle is
(x - h)2 + (y - k)2 = r2
(x−2)2+(y+1)2 = \({ (\sqrt { 50 } })^{ 2 }\)
(x−2)2+(y+1)2 = 50
6.
Equation of tangent to the circle at P(x1, y1 ) is xx1 yy1 = a2
That is, x(−3) + y(4) = 25
−3x + 4y = 25
Equation of normal is xy1 - yx1 = 0
That is, 4x + 3y = 0
7.
Since the foci are one the x-axis, the equation of the hyperbola is \(\frac { { x }^{ 2 } }{ { a }^{ 2 } } +\frac { { y }^{ 2 } }{ { b }^{ 2 } } =1\)
Given conjugate axis = \(\frac34\) (transverse axis)
⇒ 2b = \(\frac34\) (2a) ⇒ b = \(\frac{3a}4\) ⇒ b2 = \(\frac { { 9a }^{ 2 } }{ 16 } \)
∴ e = \(\sqrt { 1-\frac { { b }^{ 2 } }{ { a }^{ 2 } } } =\sqrt { 1-\frac { 9{ a }^{ 2 } }{ { 16a }^{ 2 } } } =\sqrt { 1+\frac { 9 }{ 16 } } =\sqrt { \frac { 25 }{ 16 } } =\frac { 5 }{ 4 } \)
∴ e = \(\frac { 5 }{ 4 } \)
8.
Let P(x, y) be the movable point.
By focal property of ellipse, PA + PB = 2a
∴ 2a = 10 ⇒ a = 5
Since focus is (4, 0), ae = 4 ⇒ 5e = 4 ⇒ e = \(\frac45\)
Also b2 = a2(1 - e2) = 25\(\left( 1-\frac { 16 }{ 25 } \right) =25\left( \frac { 9 }{ 25 } \right) \) = 9
Equation of ellipse is \(\frac { { x }^{ 2 } }{ { a }^{ 2 } } +\frac { { y }^{ 2 } }{ { b }^{ 2 } } =1\)
\(\frac { { x }^{ 2 } }{ 25 } +\frac { { y }^{ 2 } }{ 9 } =1\)
9.
Given circle is x2 +y2 + 2x - 3y - 8 = 0
Equation of tangent is xx1 + yy1 + 1(x + x1) -\(\frac{3}{2}\)
(y + y1) - 8 = 0
AE(2, 3), the tangent is
x(2) + y(3) + x + 2 - \(\frac{3}{2}\) (y + 3) -8 = 0
⇒ 3x + 3y + 2 - \(\frac{3y}{2}\) - \(\frac92\) - 8 = 0
Multiply by 2 we get,
⇒ 6x + 6y + 4 - 3y - 9 - 16 = 0
⇒ 6x + 3y - 21 = 0
10.
Given ends of diameter are (3, 4)(2, -7)
∴ Equation of the circle is
(x - x1)(x - x2) + (y - y1)(y - y2) = 0
⇒ (x - 3)(x - 2) + (y - 4)(y + 7) = 0
⇒ x2 - 2x - 3x + 6 + y2 + 7y - 4y - 28 = 0
⇒ x2 + y2 − 5x + 3y − 22 = 0

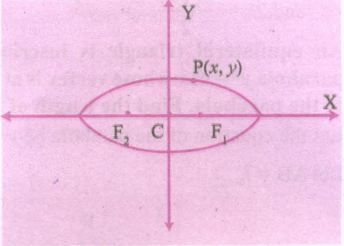

11.
Given F1P + F2P = 8
By the focal property of ellipse
F1P + F2P = 2a
∴ 2a = 8 ⇒ a = 4
and distance between the foci = F1F2 = 6
2ae = 6 ⇒ ae = 3
∴ 4(e) = 3 ⇒ e \(\frac34\)
∴ b2 = a2(1- e2)
= \(16\left( { 1-\left( \frac { 3 }{ 4 } \right) }^{ 2 } \right) =16\left( 1-\frac { 9 }{ 10 } \right) =16\left( \frac { 7 }{ 16 } \right) =7\)
∴ The path traced by him is an ellipse and its equation is \(\frac { { x }^{ 2 } }{ { a }^{ 2 } } +\frac { { y }^{ 2 } }{ { b }^{ 2 } } =1\)
⇒ \(\frac { { x }^{ 2 } }{ 16 } -\frac { { y }^{ 2 } }{ 7 } \) = 1
12.
Equation of the ellipse is \(\frac { { x }^{ 2 } }{ 25 } +\frac { y^{ 2 } }{ 9 } =1\)
∴ a2 = 25, b2 = 9
∴ e = \(\sqrt { 1-\frac { { b }^{ 2 } }{ { a }^{ 2 } } } =\sqrt { 1-\frac { 9 }{ 25 } } =\sqrt { \frac { 16 }{ 25 } } =\frac { 4 }{ 5 } \)
Focus is (ae, 0) = \(\left( 5\times \frac { 4 }{ 5 } \right) \) = (4, 0)
Since the focus of the hyperbola coincides with the focus of the ellipse, foci of the hyperbola are (±4,0).
Let A be the length of the semi-transverse axis
∴ Ae - 4 ⇒ 2A = \(\frac { 4 }{ e } =\frac { 4 }{ 2 } =2\) [∵ e = 2]
Let B b th length of the semi conjugate axis
B2 = A2(e2 - 1) = 4(4 - 1) = 12
Equation of the hyperbola is \(\frac { { x }^{ 2 } }{ { A }^{ 2 } } -\frac { { y }^{ 2 } }{ { B }^{ 2 } } =1\)
⇒ \(\frac { { x }^{ 2 } }{ 4 } -\frac { { y }^{ 2 } }{ 12 } =1\)
13.
By the definition of a conic \(\frac{SP}{PM}\)= e or SP2 = e2PM2
Then, (x−2)2 + (y−3)2 = \(\frac { 1 }{ 4 } \) (x-7)2
3x2+ 4y2−2x − 24y + 3 = 0
\({ 3\left( x-\frac { 1 }{ 3 } \right) }^{ 2 }+4(y-3)^{ 2 }=3\left( \frac { 1 }{ 9 } \right) +4\times 9-3=\frac { 100 }{ 3 } \)
\(\frac { { \left( x-\frac { 1 }{ 3 } \right) }^{ 2 } }{ \frac { 100 }{ 9 } } +\frac { (y-3{ ) }^{ 2 } }{ \frac { 100 }{ 12 } } \) = 1 which is in the standard form.
Therefore, the length of major axis = 2a = 2\(\sqrt { \frac { 100 }{ 9 } = } \frac { 20 }{ 3 } \) and
the length of minor axis = 2b = 2\(\sqrt { \frac { 100 }{ 12 } = } \frac { 10 }{ \sqrt { 3 } } \).
14.
For the parabola,
x2- 4x - 5y -1 = 0
x2- 4x = 5y +1
x2−4x +4 = 5y +1+ 4
(x − 2)2 = 5(y +1) which is in standard form.
Therefore 4a = 5 and the vertex is (2, -1) , and focus is \(\left( 2,\frac { 1 }{ 4 } \right) \)
Equation of directrix is
y-k+ a = 0
y+1+\(\frac { 5 }{ 4 } \)
4y +9 = 0
Length of latus rectum is 5 units.
15.
(b)
(5, 0)
16.
(b)
17.
(d)
9
18.
(b)
19.
(c)
\(\frac { 2 }{ \sqrt { 3 } } \)
