Surface Areas and Volumes
Download CBSE Class 10th Standard CBSE Maths question papers, sample papers, important questions, and previous year solved papers in PDF format. Get free study materials, NCERT solutions, and exam preparation resources for Class 10th Standard CBSE Maths
Questions + Answers key
Take MCQ Maths Test

1.
A tank is 225 m long, 162 m broad. With what velocity per sec must water flow into it through an aperture 60 cm by 45 cm that the level may be raised by 20 cm in 5 h?
2.
A bucket made up of a metal sheet is in the form of a frustum of a cone of height 16 cm with radii of its lower and upper ends as 8 cm and 20 cm respectively. Find the cost of the bucket if the cost of metal sheet used is Rs. 15 per 100 cm2 and find the cost of the milk which can completely fill the bucket at the rate of Rs. 16 per litre. \([Use\quad \pi =3.14]\)
3.

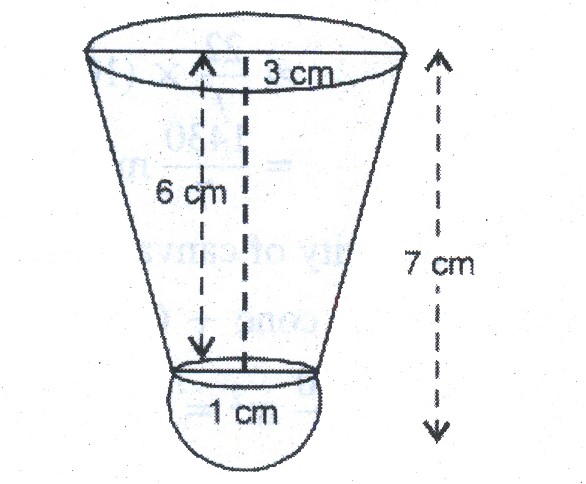

A shuttlecock used for playing badminton has the shape of a frustum of a cone mounted on a hemisphere as shown in the figure. The external diameters of the frustum are 6 cm and 2 cm and the height of the entire shuttle cock is 7 cm. Find the external surface area.

4.
Water is flowering at the rate of 2.52 km/h through a cylindrical pipe into a cylindrical tank, the radius of whose base is 40 cm, If the increase in the level of water in the tank, in half an hour is 3.15 m, find the internal diameter of the pipe.
5.
Length of a room is one and half times of its breadth. The cost of carpeting the room at Rs.3.25 per m2 is Rs.175.50 and the cost of papering the walls at Rs.1.40 per m2 is Rs.240.80. If 1 door and 2 windows occupy 8 m2, find the dimensions of the room.
6.
A lead pencil consists of a cylinder of wood with solid cylinder of graphite filled into it. The diameter of the pencil is 7 mm; the diameter of the graphite is 1 mm and the length of the pencil is 10 cm. Calculate the weight of the whole pencil if the specific gravity of the wood is 0.7 g/cm3 and that of the graphite is 2.1 g/cm3 .
7.
A tent consists of a frustum of cone, surmounted by a cone. If the diameter of the upper and lower circular ends of the frustum are 14 m and 26 m respectively, the height of the frustum is 8 m and the slant height of the surmounted conical portion is 12 m, find the area of canvas required to make the tent. (Assume that the radii of the upper circular end of the frustum and the base of surmounted conical portion are equal.)
8.
A solid right circular cone of diameter 14 cm and height 8 cm is melted to form a hollow sphere. If the external diameter of the sphere is 10 cm, find the internal diameter of the sphere.
9.
A juice seller serves his customers using a glass as shown in figure.The inner diameter of the cylindrical glass is 5cm, but the bottom of the glass has a hemispherical portion raised which reduces the capacity of the glass.If the height of the glass is 10cm, find the apparent capacity of the glass and its actual capacity.[\(\pi\)=3.14]

10.
A wooden article was made by scooping out a hemisphere from each end of a solid cylinder.If the height of the cylinder is 20cm and radius of the base is 3.5cm, find the total surface area of the article.
1.
1.5 m/s
2.
780 m
3.
Let R = 3 cm, r = 1 cm and h= 7-1 6 cm
∴ Slant height = \(\sqrt { { h }^{ 2 }+(R-r)^{ 2 } } \)
= \(\sqrt { { 6 }^{ 2 }+(3-1)^{ 2 } } \)
= \(\sqrt { 36+4 } =\sqrt { 40 } \)
=6.32 cm
Now, external surface area of the shuttlecock =C.S.A. of the frustum of cone + C.S.A. of base hemisphere
= \(\pi l(R+r)+2\pi { r }^{ 2 }\)
= \(\frac { 22 }{ 7 } \times 6.32\times (3+1)+2\times \frac { 22 }{ 7 } \times 1\times 1\)
=\(\frac { 22 }{ 7 } \times 6.32\times 4+\frac { 44 }{ 7 } \) = 79.45+6.29
= 85.74 cm2
Hence, the required external surface area of the shuttlecock is 85.74 cm2
4.
Let internal radius of the pipe = x cm
Speed of water = 2.52 km/h = 2520 m/h
\(\therefore \) Volume of water that flows in half an hour = \(\frac { 1 }{ 2 } \pi r^{ h }h\)
\(=\frac { 1 }{ 2 } \pi \times \frac { x }{ 100 } \times \frac { x }{ 100 } \times 2520=\frac { 126\pi x^{ 2 } }{ 1000 } m^{ 3 }\)
Volume of water cylindrical tank
= \(\pi \times \frac { 40 }{ 100 } \times \frac { 40 }{ 100 } \times 3.15\quad m^{ 3 }\)
\(\Rightarrow \frac { 126\pi x^{ 2 } }{ 1000 } =\pi \times \frac { 40 }{ 100 } \times \frac { 40 }{ 100 } \times 3.15\)
\(x^{ 2 }=\frac { 40 }{ 100 } \times \frac { 40 }{ 100 } \times 3.15\times \frac { 1000 }{ 126 } \)
\(x^{ 2 }=4\Rightarrow x=2cm\)
\(\therefore \) Internal diameter = 4cm
5.
Let breadth of the room be x m
\(\Rightarrow \) Length of the room is
1\(\frac { 1}{2 } \) x = \(\frac {3 }{2 } \)x m and height be h m
Area of the floor
= \(\frac { Cost \ of \ carpeting }{ cost \ of \ carpeting \ 1 \ m^{ 2 } } \)
\(=\frac { 175.50 }{ 3.25 } =54m^{ 2 }\)
\(\Rightarrow x\times \frac { 3 }{ 2 } x=54\)
\(\Rightarrow x^{ 2 }=\frac { 54\times 2 }{ 3 } \Rightarrow x=6m\)
\(\therefore \) Length of the room = \(\frac { 3 }{ 2 } \times 6=9m\)
and breadth of the room= 6m
Area to be papered = area of 4 walls - area of door and windows
= [2 x h(9+6)-8] m2
= (30h-8) m2 ...(i)
Also, area to be papered
\(=\frac { total \ cost \ of \ papering \ }{ cost \ of \ papering \ 1 \ m^{ 2 } } =\frac { 240.80 }{ 1.40 } m^{ 2 }\)
\(\frac { 2408 }{ 14 } =172m^{ 2 }\) ....(ii)
From (i) and (ii)
30h-8 = 172
\(\Rightarrow \) 30h-8 = 172
\(\Rightarrow \) h= 6m
6.
Diameter of pencil = 7 mm
\(\therefore \) Radius = 3.5 mm = 0.35 cm
Length of pencil = 10 cm
Volume = \(\pi r^{ h }\)
= \(\pi \times 0.35\times \times 0.35\times 10\)
= 1.225 \(\pi cm^{ 3 }\)
Diameter of lead = 1 mm
\(\therefore \) Radius = \(\frac { 1 }{ 2 } mm\quad =0.05\quad cm\)
Length = 10 cm
Volume = \(\pi \times 0.05\times 0.05\times 10\)
= 0.025 \(\pi cm^{ 3 }\)
\(\therefore \)Volume of the wood = Volume of pencil - volume of lead
= 1.225 \(\pi -0.025\pi =1.2\pi cm^{ 3 }\)
Specific gravity of wood = 0.7 g/cm3
\(\therefore \) Weight of wood = 1.2 \(\pi \times 0.7=0.84\pi g\)
Specific gravity of lead (graphite ) = 2.1 g/cm3
\(\therefore \) Weight of lead = 2.1X \(0.025\pi \)
= \(0.0525\pi g\)
Total weight = \(0.0525\pi g+0.84\pi g\)
= 2.805 g.
7.
R1 = 7m ; R2 =13cm
Slant height of cone L = 12m
Slant height of frustum, I = \(\sqrt { (8)^{ 2 }+6^{ 2 } } =10m\)
= \(\sqrt { 8^{ 2 }+6^{ 2 } } =10m\)
Area of canvas required = curved surface area of frustum + curved surface area of cone
= \(\pi (R_{ 1 }-R_{ 2 })l+\pi R_{ 1 }L\)
\(=\pi (13+7)\times 10+\pi \times 7\times 12\)
\(=200\pi +84\pi =284\pi m^{ 2 }\)
8.
Volume of hollow sphere = volume of cone
\(\frac{4}{3}\pi (R^3 - r^3)=\frac{1}{3}\pi r^2h\)
\(\Rightarrow \ \frac{4}{3}(5^3 - r^3)=\frac{1}{3}\times(7)^2 \times8\)
\(\Rightarrow \ \frac{4}{3}(125 - r^3)=\frac{1}{3}\times49 \times8\)
\(\Rightarrow \ 500 -4r^3 = 49\times 8\)
\(\Rightarrow \ -4r^3 = 392 - 500\)
\(\Rightarrow \ -4r^3 = -108\)
\(\Rightarrow \ r^3 =27\)
\(\Rightarrow \ r =3\) cm
Diameter, d = 6 cm
9.
Apparent capacity Of glass = \(\pi r^{ 2 }h\)
= 3.14 \(\times \left( \frac { 5 }{ 2 } \right) ^{ 2 }\times 10cm^{ 3 }=196.25cm^{ 3 }\)
Actual capacity of glass = apparent capacity — volume of hemispherical part
= 196.25 cm3 - \(\frac { 2 }{ 3 } \times 3.14\times \left( \frac { 5 }{ 2 } \right) ^{ 3 }=196.25cm^{ 3 }=32.70\quad cm^{ 3 }=163.55cm^{ 2 }\)
10.
Height of cylinder = 20 cm
radius of cylinder = 3.5 cm = radius of each hemisphere
Total surface area of the article = 2X C.S.A of a hemisphere
= \(2\times 2\pi r^{ 2 }+2\pi rh\rightleftharpoons 2\pi r(2r+h)\)
= \(2\times \frac { 22 }{ 7 } \times 3.5\left[ 2\times 3.5+20 \right] \)
= 44 x 0.5[7+20] = 44 x 0.5 x 27 cm2 = 594.0 cm2
