QB365 Provides the updated NCERT Exemplar Questions for Class 12, and also provide the detail solution for each and every case study questions. NCERT Exemplar questions are latest updated question pattern from NCERT, QB365 will helps to get more marks in Exams
Download CBSE Class 12th Standard CBSE Physics question papers, sample papers, important questions, and previous year solved papers in PDF format. Get free study materials, NCERT solutions, and exam preparation resources for Class 12th Standard CBSE Physics
Questions + Answers key
Take MCQ Physics Test1.
Amagnetic field in a certain region is given by \(\mid \mathbf{B}=B_{0} \cos (\omega t) \hat{\mathbf{k}}\) and a coil of radius a with resistance R, is placed in the xy-plane with its centre at the origin in the magnetic field as shown in the figure. Find the magnitude and the direction of the current at (a, 0, 0) at
\(t=\frac{\pi}{2 \omega}, t=\frac{\pi}{\omega} \text { and } t=\frac{3 \pi}{2 \omega}\)

2.
A solenoid is connected to a battery, so that a steady current flows through it. If an iron core is inserted into the solenoid, will the current increase or decrease? Explain
3.

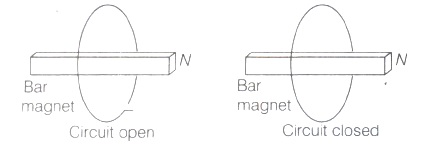

Consider a magnet surrounded by a wire with an ON/OFF switch as shown in the figure. If the switch is thrown from the OFF position (open circuit) to the ON position (closed circuit), will a current flow in the circuit? Explain

4.
(i) A metal ring is held horizontally and a bar magnet is dropped through the ring with its length along the axis of the ring. What will be the acceleration of a falling magnet?
(ii) Consider a metal ring kept on top of a fixed solenoid (say on cardboard) (see figure). The center of the ring coincides with the axis of the solenoid. If the current is suddenly switched ON, the metal ring jumps up. Explain.

1.
At any instant, flux passing through the ring is given
\(\text { by } \phi=\mathbf{B} \cdot \mathbf{A}=B A \cos \theta=B A \quad[\because \theta=0]\)
\(\text { or } \phi=B_{0}\left(\pi a^{2}\right) \cos \omega t \quad\left[\because B=B_{0} \cos \omega t\right]\)
By Faraday's law of electromagnetic induction, the magnitude of induced emf is given by

\(e=\frac{d \phi}{d t}=B_{0}\left(\pi a^{2}\right) \omega \sin \omega t\)
This causes flow of induced current, which is given by
\(I=B_{0}\left(\pi a^{2}\right) \omega \sin \omega t / R\)
Now, finding the values of current .at different instants.So, we have current at
\(t=\frac{\pi}{2 \omega} \Rightarrow I=\frac{B_{0}\left(\pi a^{2}\right) \omega}{R} \text { along }\)\(\hat{j}\)
Because, \(\sin \omega t=\sin \left(\omega \frac{\pi}{2 \omega}\right)=\sin \frac{\pi}{2}=1\)
At \( t=\frac{\pi}{\omega} \Rightarrow I=\frac{B_{0}\left(\pi a^{2}\right) \omega}{R} \times \sin \pi=0 \)
Because \(\sin \omega t=\sin \left(\omega \frac{\pi}{\omega}\right)=\sin \pi=0\)
At \(t=\frac{3 \pi}{2 \omega} \Rightarrow I=\frac{B_{0}\left(\pi a^{2}\right) \omega}{R} \text { along }-\hat{j}\)
\(\sin \omega t=\sin \left(\omega \frac{3 \pi}{2 \omega}\right)=\sin \frac{3 \pi}{2}=-1\)
2.
When the iron core is inserted in the current carrying solenoid, the magnetic field increases due to the magnetisation of iron core and consequently, the flux increases. According to Lenz's law, the emf produced must oppose this increase in flux, which can be done by making decrease in current. So, the current will decrease.
3.
When the switch is thrown from the OFF position (open circuit) to the ON position (closed circuit), then neither B nor A and the angle between B and A does not change. Thus, no change in magnetic flux linked with coil occur, hence no electromotive force is produced and consequently, no current will flow in the circuit.
4.
(i) As the magnet falls, the magnetic flux linked with the ring increases. This induces emf in the ring which opposes the motion of the falling magnet, hence a < g.
