Lines and Angles
Download CBSE Class 9th Standard CBSE Mathematics question papers, sample papers, important questions, and previous year solved papers in PDF format. Get free study materials, NCERT solutions, and exam preparation resources for Class 9th Standard CBSE Mathematics
Questions + Answers key
Take MCQ Mathematics Test

1.
The angles of a triangles are (x-40), (x-20)o and \((\frac{x}{2}-10)^o\), Find the value of x and then the angles of the triangle.
2.
In the given figure, AF||BE, \(AC\bot BE\) and AF bisects \(\angle GAD.\) If \(\angle GAD=70^o\), then find the measure of \(\angle ABC\ and\ \angle ADE \)

3.
In \(\triangle ABC, if\ \angle A=(2x-5^o),\angle B=(5x+5^o),\angle C=(3x+50^o)\), then find the value of x, \(\angle A, \angle B\ and\ \angle C.\)
4.
An exterior angle of a triangle is 110o and one of the interior opposite angles is 30o. Find the measure of another two angles of the triangle.
5.
If a transversal intersects two parallel lines, then the bisectors of any pair of alternate angles are parallel. prove it.
6.
In given figure BA||ED and BC||EF. Show that \(\angle ABC=\angle DEF.\)

7.
In the figure PQ||RS, CBD is a transverse and \(\angle BCQ=135\). Find \(\angle RBD\)

8.
In the figure find 'x'

9.

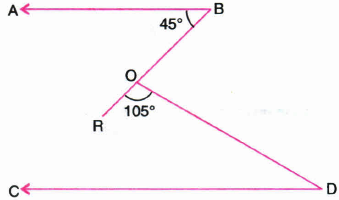

In the figure AB || CD if \(\angle ABR=45^{ 0 }\) and \(\angle ROD=105^{ 0 }\) then find \(\angle \) ODC

10.

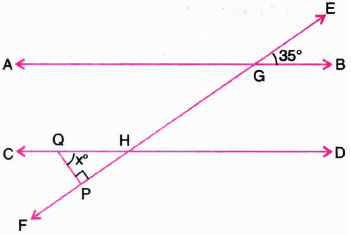

In the given figure AB ||CD and EF is transversal cutting them at G and H respectively.If \(\angle EGB=35^{ 0 }\) and QP \(\bot \) then find \(\angle PQH\)

11.
find the angles of a triangle PQR if \(\angle p-\angle q=45^{ 0 }\) and \(\angle Q-\angle R=30^{ 0 }\)
12.
An exterior angle of a triangle is \(115^{ 0 }\) and one of the interior opposite angles is \(35^{ 0 }\).Find the other two angles of the triangle.
13.
In figure \(\angle \) DOB =\(87^{ 0 }\) and \(\angle \) COA =\(82^{ 0 }\) If \(\angle \)BOA \(35^{ 0 }\) and Find \(\angle \) COB and \(\angle \)COD

14.
If (3x-\(58^{ 0 }\)) and (x+\(38^{ 0 }\)) are supplementary angles,find x and the angles.
15.
Find the supplement of \(\frac { 4 }{ 3 } \) of right angle
1.
\((x+40)^0+(x-20)^o+\left(\frac{x}{2}-10\right)^o=180^o\)
\(\Rightarrow \frac{5x}{2}-70=180^o\)
\(\Rightarrow \frac{5x}{2}=250^o\)
x=100o
So, angles are 60o, 80o and 40o
2.
AF||BE
\(\angle GAF=\angle DAF=\frac{70^o}{2}=35^o\)(AF bisects \(\angle GAD)\)
\(\angle DAF=\angle ADB=35^o\) (Alternate angles)
\(\therefore \angle ADE=180^o-35^o=145^o\)(L.P.A)
ext \(\angle GAD=\angle ABC+\angle ADB\)
(Exterior angle is the sum of the two opposite interior angles)
\(\Rightarrow 70^o=\angle ABC+35^o\)
\(\therefore \angle ABC=35^o\)
3.
In \(\triangle ABC\)
\(\angle A+\angle B+\angle C=180^o\) (Angle Sum prop. of \(\triangle)\)
2x-5o+5x+5o+3x+50o=180o
10x=130o
x=13o
\(\angle A=2x-5^o=21^o\)
\(\angle B=5x+5^o=70^o\)
\(\angle C=3x-50^o=89^o\)
4.
Exterior angle= Sum of opposite two interior angle
other angle =180-110=70o
110=30+x
x=80o
5.

\(\angle BMN=\angle CNM(alternate \angle 's)\)
\(\frac{1}{2}\angle BMN=\frac{1}{2}\angle CNM\)
x=y
(But x and y are alternate angles)
MP || NQ
6.
Construction: Extend AB to meet EF in P.

\(\angle ABC=\angle APF\) ..(i) (Corresponding angles)
Now \(\angle DEF=\angle APF\)...(ii) (Corresponding angles)
From (i) and (i)
\(\angle ABC=\angle DEF\)
7.
\(\angle DBS=\angle BCQ=135\) [Corresponding angles]
\(\angle RBD=180^o-\angle DBS\)
=180o-135o=45o
8.
\(110^{ 0 }\)
9.
\(30^{ 0 }\)
10.
\(55^{ 0 }\)
11.
\(100^{ 0 },55^{ 0 },25^{ 0 }\)
12.
\(80^{ 0 }\),\(65^{ 0 }\)
13.
\(\angle \)COB=\(47^{ 0 }\) ,\(\angle \)COD=\(40^{ 0 }\)
14.
x=50, \(92^{ 0 }\) and \(88^{ 0 }\)
15.
\(\frac{4}{3}\) of a right angle=\(\frac{4}{3}\times90^o=120^o\)
(Sum of supplementary angles is 180o)
Supplement of 120o=180o-120o=60o
