In this question paper, some of the important one mark, two and five marks questions from the chapter Coordinate Geometry are covered. The questions are prepared from the book back and PTA question.
Students, subscribe and get plenty of question paper with answer key. For subscription please click here.
Download Tamil Nadu 9th Standard Maths question papers, model tests, one-mark questions, important questions, and public exam papers in PDF format. Free study materials and answer keys for TN State Board students.
Questions + Answers key
Take MCQ Maths Test1.
Find the perimeter of the triangle whose vertices are(3, 2), (7, 2) and (7, 5).
2.
Let A(2, 3) and B(2, –4) be two points. If P lies on the x-axis, such that AP = \(\frac{3}{7}\) AB, find the coordinates of P.
3.
The point (x, y) is equidistant from the points (3, 4) and (–5, 6). Find a relation between x and y.
4.
Calculate the distance between the points A (7, 3) and B which lies on the x-axis whose abscissa is 11.
5.
Show that the following points A(3, 1), B(6,4) and C(8, 6) lies on a straight line.
6.
Plot the points A( -1, 0), B( 3, 0), C(3, 4), and 0(-1, 4) on a graph sheet. Join them to form a rectangle. Draw the mirror image Of the diagram in clockwise direction:
(i) about x-axis.
(ii) about y-axis.
What is your observation on the coordinates of the mirror image?
7.
Find the distance between the following pairs of points. (3,– 9) and (–2, 3)
8.
Plot the following points in the coordinate plane. Join them in order. What type of geometrical shape is formed?
(–3, 3) (2, 3) (–6, –1) (5, –1)
9.

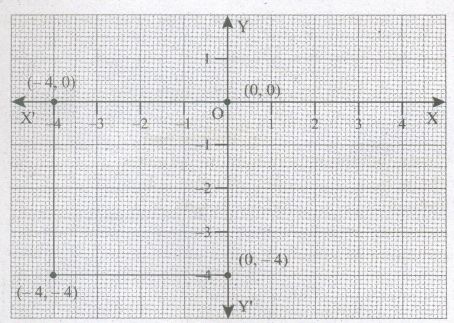

Plot the following points in the coordinate plane. Join them in order. What type of geometrical shape is formed?
(0, 0) (–4, 0) (–4, –4) (0, –4)
10.
Plot the following points in the coordinate plane and join them. What is your conclusion about the resulting figure?
(0, –4) (0, –2) (0, 4) (0, 5)
11.
The centre of a circle is (0, 0). One end point of a diameter is (5, -1), then ______________
\(\sqrt{24}\)
\(\sqrt{37}\)
\(\sqrt{26}\)
\(\sqrt{17}\)
12.
A point on the y-axis is ________________
(1, 1)
(6,0)
(0,6)
(-1, -1)
13.
A point which lies in the III quadrant is__________________
(5, 4)
(5, - 4)
(-5, - 4)
(-5,4)
14.
The point whose abscissa is 5 and lies on the x-axis is__________
(-5, 0)
(5,5)
(0,5)
(5,0)
15.
On which quadrant does the point (- 4, 3) lie?
I
II
III
IV
16.
The distance between the point ( 5, –1 ) and the origin is _______.
\(\sqrt { 24 } \)
\(\sqrt { 37 } \)
\(\sqrt { 26 } \)
\(\sqrt { 17 } \)
17.
If Q1, Q2, Q3, Q4 are the quadrants in a Cartesian plane then \({ Q }_{ 2 }\cap { Q }_{ 3 }\) is ______.
\({ Q }_{ 1 }\cup { Q }_{ 2 }\)
\({ Q }_{ 2 }\cup { Q }_{ 3 }\)
Null set
Negative x-axis
18.
If ( x+2, 4) = (5, y–2), then the coordinates (x,y) are _____.
(7, 12)
(6, 3)
(3, 6)
(2, 1)
19.
If the points A (2, 0), B (-6, 0), C (3, a-3) lie on the x-axis then the value of a is _____.
0
2
3
-6
20.
The distance between the two points ( 2, 3 ) and ( 1, 4 ) is ______.
2
\(\sqrt { 56 } \)
\(\sqrt { 10 } \)
\(\sqrt { 2 } \)
21.
The point whose ordinate is 4 and which lies on the y-axis is ______.
( 4, 0 )
(0, 4)
(1, 4)
(4, 2)
22.
If P( –1, 1), Q( 3, -4), R( 1, -1), S(-2, -3) and T( -4, 4) are plotted on a graph paper, then the points in the fourth quadrant are ______.
P and T
Q and R
only S
P and Q
23.
On plotting the points O(0, 0), A(3, – 4), B(3, 4) and C(0, 4) and joining OA, AB, BC and CO, which of the following figure is obtained?
Square
Rectangle
Trapezium
Rhombus
24.
Signs of the abscissa and ordinate of a point in the fourth quadrant are respectively
(+,+)
( –, –)
(–, +)
( +, –)
25.
Point (–3, 5) lie in the ________ quadrant
I
II
III
IV
26.
Show that the point A (3,7) B (6, 5) and C (15, -1) are collinear.
27.
Show that the point (3, -2), (3, 2), (-1, 2) and (-1, -2) taken in order are the vertices of a square.
1.
Distance = \(\sqrt { ({ x }_{ 2 }-{ x }_{ 1 })^{ 2 }+(y_{ 2 }-{ y }_{ 1 })^{ 2 } } \)
AB= \(\sqrt { (7-3)^{ 2 }+(2-2)^{ 2 } } \)
= \(\sqrt { { 4 }^{ 2 }+0^{ 2 } } \)
= \(\sqrt { 16 } =4\)
BC = \(\sqrt { (7-7)^{ 2 }+(5-2)^{ 2 } } \)
= \(\sqrt { 0+(3)^{ 2 } } \)
= \(\sqrt { 9 } =3\)
AC = \(\sqrt { (7-3)^{ 2 }+(5-2)^{ 2 } } \)
= \(\sqrt { { 4 }^{ 2 }+{ 3 }^{ 2 } } \)
= \(\sqrt { 16+9 } =\sqrt { 25 } =5\)
Perimeter of ΔABC = AB + BC + AC
= 4 + 3 + 5 =12 units
2.
Given points are A(2, 3) and B(2, -4)
The point P lines on the x-axis.
∴ The point P is (x, 0)
AP = \(\frac { 3 }{ 7 } \) AB
\(\frac { AP }{ AB } \) = \(\frac { 3 }{ 7 } \)
\(\frac { AP }{ PB } \) = \(\frac { 3 }{ 7 } \) ........(1)
Distance =\(\sqrt { ({ x }_{ 2 }-{ x }_{ 1 })^{ 2 }+(y_{ 2 }-y_{ 1 })^{ 2 } } \)
AP = \(\sqrt { (x-2)^{ 2 }+(0-3)^{ 2 } } \)
= \(\sqrt { { x }^{ 2 }-4x+4+9 } \)
= \(\sqrt { { x }^{ 2 }-4x+13 } \)
BP =\(\sqrt { (x-2)^{ 2 }+(0+4)^{ 2 } } \)
= \(\sqrt { x^{ 2 }-4x+4+16 } \)
= \(\sqrt { x^{ 2 }-4x+20 } \)
From (1) we get
\(\frac { AP }{ PB } \) = \(\frac { 3 }{4 } \)
\(\frac { \sqrt { { x }^{ 2 }-4x+13 } }{ \sqrt { { x }^{ 2 }-4x+20 } } =\frac { 3 }{ 4 } \) (Squaring on both sides)
\(\frac { { x }^{ 2 }-4x+13 }{ { x }^{ 2 }-4x+20 } =\frac { 9 }{ 16 } \)
16x2- 64x + 208 = 9x2 - 36x + 180
7x2 - 28x + 28 = 0
x2- 4x + 4 = 0
(x-2)2= 0
x-2 =0
x = 2
∴ The point P is (2, 0)
3.
Let the point O be (x, y), A be (3, 4) and B be (-5, 6).
Distance = \(\sqrt { ({ x }_{ 2 }-{ x }_{ 1 })^{ 2 }+(y_{ 2 }-y_{ 1 })^{ 2 } } \)
Given OA = OB
\(\sqrt { (x-3)^{ 2 }+(y-4)^{ 2 } } =\sqrt { (x+5)^{ 2 }+(y-6)^{ 2 } } \)
Squaring on both sides
(x-3)2 + (y-4)2 = (x+5)2+(y-6)2
x2-6x+9+y2-8y+16 = x2+10x+25+y2-12y+36
x2+y2-6x-8y+25 = x2+y2+10x-12y+61
-6x-10x-8y+12y = 61-25
⇒ -4x + y = 9
The relation between x and y is y = 4x + 9
4.
Since B is on the x-axis, the y-coordinate of B is 0.
So, the coordinates of the point B is (11, 0)
By the distance formula the distance between the points A (7, 3), B (11, 0) is
\(d=\sqrt { \left( { x }_{ 2 }-{ x }_{ 1 } \right) ^{ 2 }+\left( y_{ 2 }-y_{ 1 } \right) ^{ 2 } } \)
\(AB=\sqrt { \left( 11-7 \right) ^{ 2 }+\left( 0-3 \right) ^{ 2 } } \)
\(=\sqrt { \left( 4 \right) ^{ 2 }+\left( -3 \right) ^{ 2 } } =\ \sqrt { 16+9 } =\sqrt { 25 } =5\)
5.
Using the distance formula, we have
\(AB=\sqrt { \left( 6-3 \right) ^{ 2 }+\left( 4-1 \right) ^{ 2 } } =\sqrt { 9+9 } =\sqrt { 18 } =3\sqrt { 2 } \)
\(BC=\sqrt { \left( 8-6 \right) ^{ 2 }+\left( 6-4 \right) ^{ 2 } } =\sqrt { 4+4 } =\sqrt { 8 } =2\sqrt { 2 } \)
\(AC=\sqrt { \left( 8-3 \right) ^{ 2 }+\left( 6-1 \right) ^{ 2 } } =\sqrt { 25+25 } =\sqrt { 50 } =5\sqrt { 2 } \)
\(AB+BC=3\sqrt { 2 } +3\sqrt { 2 } =5\sqrt { 2 } =AC\)
Therefore the points lie on a straight line.
6.
Take a graph sheet and plot all the points and join the points to form a rectangle.
Take a mirror and see the image of the rectangle formed.
7.
Distance between the two points (3,- 9) and (-2, 3)
= \(\sqrt { ({ x }_{ 2 }-{ x }_{ 1 })^{ 2 }+({ y }_{ 2 }-{ y }_{ 1 })^{ 2 } } \)
= \(\sqrt { (-2-3)^{ 2 }+(3+9)^{ 2 } } =\sqrt { (-5)^{ 2 }+(12)^{ 2 } } \)
=\(\sqrt { 25+144 } =\sqrt { 169 } \) = 13 units
8.
The shape of the geometrical figure Trapezium.
9.
The geometrical shape of the figure is square
10.
The line is on the y - axis
11.
(c)
\(\sqrt{26}\)
12.
(c)
(0,6)
13.
(c)
(-5, - 4)
14.
(d)
(5,0)
15.
(b)
II
16.
(c)
\(\sqrt { 26 } \)
17.
(c)
Null set
18.
(c)
(3, 6)
19.
(c)
3
20.
(d)
\(\sqrt { 2 } \)
21.
(b)
(0, 4)
22.
(b)
Q and R
23.
(c)
Trapezium
24.
(d)
( +, –)
25.
(b)
II
26.
Distance = \(\sqrt{(x_2-x_2)^2+(y_2-y_1)^2}\)
AB =\(\sqrt{(6-3)^2+(5-7)^2}\)
\(\sqrt{3^2+(-2)^2}=\sqrt{9+4}=\sqrt{13}\)
BC=\(\sqrt{(15-6)^2+(-1-5)^2}=\sqrt{(9)^2+(-6)^2}\)
\(\sqrt{81+36}=\sqrt{117}\)
\(\sqrt{9\times 13}-3\sqrt{13}\)
AC =\(\sqrt{(15-3)^2+(-1-7)^2}\)
\(\sqrt{12^2+(-8)^2}=\sqrt{144+64}\)
\(=\sqrt{208}=\sqrt{16\times 13}=4\sqrt{13}\)

AB + BC =AC\(\Rightarrow \sqrt{13}+3\sqrt{13}=4\sqrt{13}\)
\(\therefore\)The points A,B,C are collinear.
27.
Distance = \(\sqrt{(x_2+x_1)^2+(y_2-y_1)^2}\)
AB =\(\sqrt{(3-3)^2+(2+2)^2}\)
=\(\sqrt{0+4^2}=\sqrt{16}=4\)
BC =\(\sqrt{(-1-3)^2+(2-2)^2}\)
\(\sqrt{(-4)^2+0}=\sqrt{16}=4\)
CD =\(\sqrt{(-1-1)^2+(2-2)^2}\)
\(\sqrt{0+(-4)^2}=\sqrt{16}=4\)
AD =\(\sqrt{(-1-3)^2+(-2+2)^2}\)
\(\sqrt{(-4)^2+0}=\sqrt{16}=4\)
AB = BC = CD = DA = 4. All the four sides are equal.

\(\therefore \)ABCD is a Rhombus .................(1)
Diagonal AC =\(\sqrt{(3+1)^2+(-2-2)^2}\)
\(=\sqrt{4^2+(-4)^2}=\sqrt{16+16}=\sqrt{32}\)
Diagonal BD =\(\sqrt{(3+1)^2+(2+2)^2}\)
\(=\sqrt{4^2+4^2}=\sqrt{16+16}=\sqrt{32}\)
Diagonal AC = Diagonal BD =\(\sqrt{32}\) ................ (2)
From (1) and (2) we getABCD is a square.
