Published on: 30/07/2018
Some of the important questions are prepared from this chapter Lines and Angles.
Teachers can prepared question paper with answer key within five minutes. Please Click Here for subscribe.
Download CBSE Class 9th Standard CBSE Mathematics question papers, sample papers, important questions, and previous year solved papers in PDF format. Get free study materials, NCERT solutions, and exam preparation resources for Class 9th Standard CBSE Mathematics
Questions + Answers key
Take MCQ Mathematics Test
1.
In figure lines AB and CD intersect at O.if \(\frac { \angle AOD }{ \angle DOB } =\frac { 4 }{ 5 } \angle COB\)
\(80^{ 0 }\)
\(100^{ 0 }\)
\(90^{ 0 }\)
\(70^{ 0 }\)
2.
In figure value of x is
\(30^{ 0 }\)
\(40^{ 0 }\)
\(30^{ 0 }\)
\(50^{ 0 }\)
3.
In the given figure the value of x which makes POQ a straight line is:
35
30
25
40
4.
The value of x in figure is:
\(80^{ 0 }\)
\(20^{ 0 }\)
\(25^{ 0 }\)
\(40^{ 0 }\)
5.
Which one of the following pairs is not a pair of adjacent angles?
.png)
.png)
.png)
.png)
6.
The angle complementary to \(90^{ 0 }\)-\(9^{ 0 }\) is
\(90^{ 0 }\)+\(9^{ 0 }\)
\(9^{ 0 }\)
\(180^{ 0 }\)-\(9^{ 0 }\)
\(360^{ 0 }\)-\(9^{ 0 }\)
7.
An angle which measures between \(0^{ 0 }\) and \(90^{ 0 }\) is called
a straight angle
an acute angle
a right angle
an obtuse angle
8.
In how many points two intersecting lines intersect?
4
3
2
1
9.
In figure \(\angle \)PQR =\(\angle \)PRQ then prove that \(\angle \) PQS =\(\angle \)PRT
10.
In the figure below \(l_{ 1 }||l_{ 2 }\) and \(a_{ 1 }||a_{ 2 }\) find the value of x.
11.

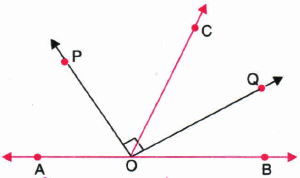

In figure OP bisects \(\angle \) AOC,OQ bisects \(\angle \) BOC and OP \(\bot \) OQ Show that points A O and B are collinear.
12.
In the given figure , two straight lines PQ and RS intersect each other at O
If \(\angle \)POT =\(75^{ 0 }\) Find the values of a,b,c
13.

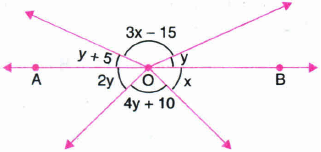

In figure, if y=\(20^{ 0 }\) , prove that the line AOB is a straight line.
14.
Ray OE bisects \(\angle \)AOB and OF the ray opposite to OE Show that \(\angle \)FOB=\(\angle \)FOA
15.
In figure given below l || m Before of RQB and DRQ intersect at P find the measure of RPQ
16.
(i) In figure ,AO \(\bot \)OB Find \(\angle \)AOC and \(\angle \) BOC
.png)
(ii) In figure,\(\angle \) AOB ;\(\angle \)BOC=2:3
If \(\angle \)AOC=\(75^{ 0 }\) then find the measure of ,\(\angle \) AOB ;\(\angle \)BOC
.png)
17.
In figure OA ,OB are opposite rays and \(\angle \)AOC +\(\angle \)BOD=\(90^{ 0 }\) Find \(\angle \) COD
18.

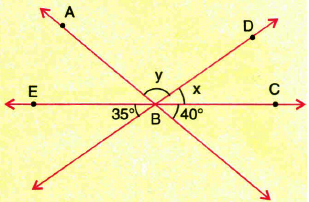

Find the value of x and y in the figure
19.

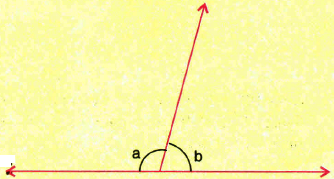

In the given figure a is greater than b, by \(\frac { 1 }{ 6 } \) th of a straight angle Find the angles of a and b.
20.
Find the supplement of \(\frac { 4 }{ 3 } \) of right angle
1.
\((\angle AOD+\angle DOB=180^{ 0 }\)
\(4+5=9\)
\(\therefore \angle AOD=\frac { 4 }{ 9 } X180^{ 0 }=80^{ 0 }\)
\(\angle COB= 80^0\)
2.
\(4x+2x=180^{ 0 }\)
3.
\(4x+(2x+30)=180^{ 0 }\)
4.
\(5x+4x=180^{ 0 }\)
5.
\(\angle COA\) and \(\angle BOA\) are not a pair of adjacent angles
6.
Required angle=\(180^{ 0 }\)-(\(90^{ 0 }\)+\(9^{ 0 }\)) = \(90^{ 0 }\)+\(9^{ 0 }\)
7.
Definition of an acute angle
8.
(d)
1
9.
\(\therefore \)Ray QP stands on line ST
\(\therefore \) \(\angle \)PQS +\(\angle \)PQR = \(180^{ 0 }\)
|Linear Pair Axiom
Ray RP stands on line ST
\(\therefore \) \(\angle \)PRQ +\(\angle \)PRT= \(180^{ 0 }\)
| Linear Pair Axiom
From (1) and (2) we obtain
\(\angle \)PQS+\(\angle \)PQR =\(\angle \)PRQ +\(\angle \)PRT
\(\Rightarrow \)\(\angle \) PQS =\(\angle \)PRT
\(\therefore \) \(\angle \)PQR=\(\angle \)PRQ(Given)
10.
\(\angle \)1=4x+15 | Corresponding angles
2x=180-\(\angle \)1 |Corresponding angles
\(\Rightarrow \) 2x=\(180^{ 0 }\) -(4x+15)
\(\Rightarrow \) 2x=165-4x
\(\Rightarrow \) 6x=165 \(\Rightarrow \)\(x=\frac { 165 }{ 6 } =27\frac { 1^{ 0 } }{ 2 } \)
11.
Given OP bisects \(\angle \) AOC,OQ bisects\(\angle \) BOC and OP \(\bot \) OQ
To prove the points A,O and B are collinear.
\(\therefore \) OP bisects \(\angle \) AOC
\(\therefore \) \(\angle \)AOP= \(\angle \)COP ...(1)
\(\therefore \angle \)OQ bisects \(\angle \) BOC
\(\therefore \angle \)BOQ=\(\angle \)COQ ...(2)
Now ,\(\angle \)AOB
=\(\angle \)AOP+\(\angle \)COP+\(\angle \)COQ+\(\angle \)BOQ
=\(\angle \)COP+\(\angle \)COP+\(\angle \)COQ+\(\angle \)COQ
|From (1) and (2)
=2(\(\angle \)COP+\(\angle \) COQ)
\(2\angle \)POQ
2(\(90^{ 0 }\)) |\(\because OP\bot OQ\)
=\(180^{ 0 }\)
\(\therefore \) The points A, O and B are collinear
| By converse of Linear Pair Axiom.
12.
\(\therefore \) ROS is a line
\(\therefore \) 4b+\(75^{ 0 }\)+b=\(180^{ 0 }\)
\(\Rightarrow 5b=180^{ 0 }-75^{ 0 }=105^{ 0 }\)
\(\Rightarrow \) b=\(\frac { 105^{ 0 } }{ 5 } =21^{ 0 }\)
2c=\(75^{ 0 }\)+b
|Vertically opposite angles
\(\Rightarrow 2c=75^{ 0 }+21^{ 0 }\)
\(\Rightarrow 2c=96^{ 0 }\)
\(\Rightarrow \)\(c=\frac { 96^{ 0 } }{ 2 } =48^{ 0 }\)
a=4b
|Vertically opposite angkes
\(\Rightarrow a=4X21^{ 0 }=84^{ 0 }\)
Thus \(a=84^{ 0 },b=21^{ 0 },c=48^{ 0 }\)
13.
\(\because \) Sum of all the angle round a point is equal to \(360^{ 0 }\)
\(\therefore \) y+(3x-15)+(y+15)+2y+(4y+10)+x=\(360^{ 0 }\)
\(\Rightarrow \) 4x+8y=\(360^{ 0 }\)
\(\Rightarrow \) x+2y=\(90^{ 0 }\)
\(\Rightarrow \) x+2(\(20^{ 0 }\))=\(90^{ 0 }\)
\(\Rightarrow \) x+\(40^{ 0 }\)=\(90^{ 0 }\)
\(\Rightarrow x=50^{ 0 }\)
Now, y+3x-15+y+5=3x+2y-10
= 3(\(50^{ 0 }\))+2(\(20^{ 0 }\))-10
\(=150^{ 0 }+40^{ 0 }-10^{ 0 }\)
= \(180^{ 0 }\)
\(\therefore \) AOB is straight line.
14.
\(\angle \)FOB+\(\angle \)BOE=\(180^{ 0 }\) ...(1)
| Linear pair Axiom
\(\angle \)FOA+\(\angle \)AOE=\(180^{ 0 }\) .. (2)
| Linear Pair Axiom
From (1) and (2)
\(\angle \)FOB+\(\angle \)BOE=\(\angle \) FOA+\(\angle \)AOE ....(3)
But \(\angle \)BOE=\(\angle \)AOE
\(\therefore \) From (3)
\(\Rightarrow \) \(\angle \)FOB=\(\angle \)FOA
15.
\(90^{ 0 }\)
16.
Let \(\angle AOB=2x\) and \(\angle BOC=3x\)
\(\angle AOB+\angle BOC=\angle AOC\)
2x+3x=75o
\(\Rightarrow x=\frac{75^o}{5}=15^o\)
\(\angle AOB=2x=30^o\) and \(\angle BOC=3x=45^o\)
17.
\(90^{ 0 }\)
18.
X=\(35^{ 0 }\)
y=\(105^{ 0 }\)
19.
Given,
\(a-b=\frac{1}{6}\times180^o\)
a-b=30o ...(1)
a+b=180o (Linear pair)...(2)
Adding (1) & (2), 2a=210o
a=105o
b=180o-a=180o-105o
=75o
20.
\(\frac{4}{3}\) of a right angle=\(\frac{4}{3}\times90^o=120^o\)
(Sum of supplementary angles is 180o)
Supplement of 120o=180o-120o=60o
